Place of Origin:Guangdong, China
Material Introduction:Made from high-purity sintered boron carbide (B₄C).
Functional Features:High hardness, excellent wear resistance, low density, low material contamination, good chemical stability, and reliable performance in demanding grinding and milling environments.
Application Industries:Used as high-performance grinding media for milling, fine grinding, and powder dispersion in advanced materials processing, electronics, technical ceramics, pharmaceuticals, pigments, specialty chemicals, and precision engineering.
Global OEM Supply:Serving OEM customers in the USA, Germany, Japan, and Europe.
Lead Time:Typically 8–14 weeks, depending on ball diameter, quantity, dimensional tolerance, surface finish, and customization requirements.

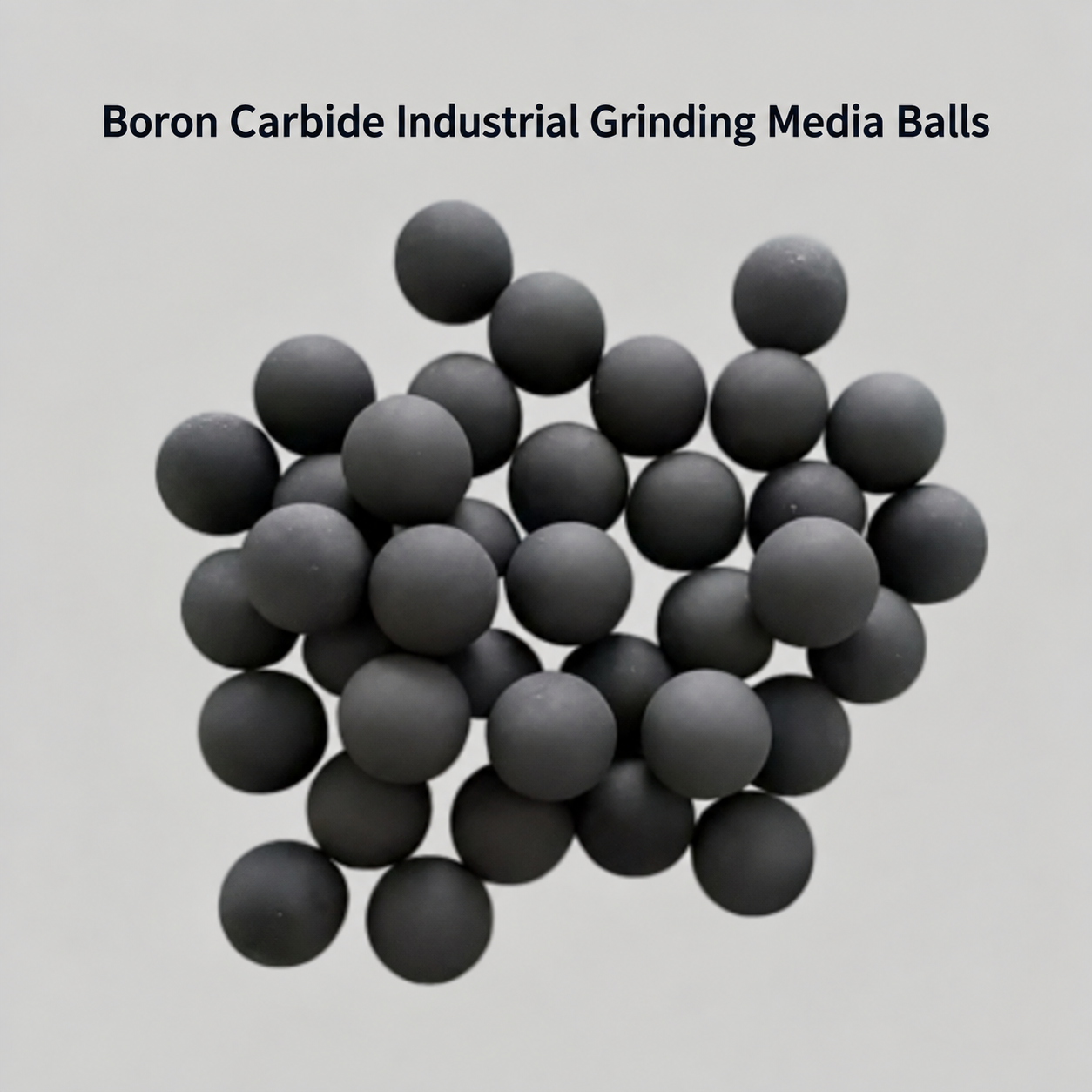

Boron carbide grinding media balls are made from high-purity sintered B₄C for fine grinding, high-energy milling, and powder dispersion. They are used to process hard ceramic powders, carbides, borides, and other abrasive materials. Their low wear rate helps address rapid media consumption and unwanted metallic contamination, making them suitable for processes where steel balls or general-purpose ceramic media do not provide a long enough service life.
Made from high-purity sintered boron carbide (B₄C) with a material purity of ≥99%.
See more products made from boron carbide ceramic .
B₄C grinding balls are mainly used in milling processes involving hard, abrasive, or contamination-sensitive powders.
They can be used as industrial wear and grinding components when ordinary media wear too quickly or introduce unacceptable metallic residue into the processed powder.
For other high-wear applications, visit our wear-resistant ceramic solutions .
Boron carbide can work with powders that cause rapid wear on conventional grinding media, including technical ceramics, carbides, and borides.
Its strong resistance to surface wear can help extend replacement intervals and reduce the amount of worn media entering the final powder.
B₄C grinding balls provide an alternative for processes where iron residue from steel balls may affect the composition, color, or performance of the finished material.
Boron carbide is lighter than zirconia and many other ceramic grinding materials. This can reduce the total media load and limit unnecessary impact on mill liners and internal parts.
Custom diameters, polished or mirror finishes, inspection requirements, order quantities, and OEM packaging can be arranged for different milling processes.
| Parameter | Typical Value | What It Means in Use |
|---|---|---|
| Material | Sintered boron carbide (B₄C) | Suitable for grinding hard and abrasive powders |
| Material Purity | ≥99% B₄C | Helps keep unwanted material in the processed powder to a minimum |
| Vickers Hardness | 28–35 GPa | Handles hard ceramic powders, carbides, and borides with less media wear |
| Density | 2.48–2.51 g/cm³ | Creates a lighter media load than high-density ceramic balls |
| Fracture Toughness | 3.5–4.5 MPa·m1/2 | Helps the balls withstand repeated contact during milling |
| Flexural Strength | ≥450 MPa | Provides strength under the loads generated inside the mill |
| Standard Diameters | Ø0.5–Ø20 mm | Available for laboratory milling, fine grinding, and general powder processing |
| Sphericity | ≥95% | Allows the media to move more evenly through the mill |
| Surface Finish | Polished or mirror finish | Helps reduce friction and powder sticking to the ball surface |
These are typical values for sintered B₄C. Final specifications may vary slightly with ball size, production method, and inspection requirements.
| Material | Typical Density | Hardness Level | Main Difference | Commonly Selected For |
|---|---|---|---|---|
| Boron Carbide (B₄C) | 2.48–2.51 g/cm³ | Extremely high | Very hard but much lighter than zirconia | Abrasive powders and applications where media wear must be limited |
| Alumina (Al₂O₃) | Approx. 3.6–3.9 g/cm³ | High | More economical and widely available | General industrial grinding |
| Zirconia (ZrO₂) | Approx. 5.9–6.1 g/cm³ | High | Higher density and better impact toughness | High-energy milling that depends on strong impact force |
| Silicon Carbide (SiC) | Approx. 3.1–3.2 g/cm³ | Very high | Good wear and chemical resistance | Abrasive or chemically demanding environments |
Boron carbide is worth considering when the process requires a hard but relatively light grinding medium. If strong impact energy is more important, zirconia may be a better fit. Alumina is often used for general grinding when cost is the main concern, while silicon carbide is suited to abrasive or chemically demanding conditions.
You can also compare our alumina, zirconia, silicon nitride, and silicon carbide ceramic balls .
They are mainly used to grind and disperse hard or abrasive powders. Typical materials include technical ceramics, carbides, borides, electronic materials, pigments, and specialty chemicals.
There is no single material that works best for every process. Boron carbide is a good option when low density, very high hardness, and low media wear are important. Zirconia is better suited to processes that need greater impact energy, while alumina is commonly used for more cost-sensitive applications.
Standard diameters range from Ø0.5 mm to Ø20 mm. Other sizes can be reviewed based on the mill type, powder material, target particle size, and order quantity.
They avoid the iron residue associated with steel grinding balls, and their low wear rate helps limit contamination from the media itself. However, the powder must still be compatible with possible trace amounts of boron and carbon.
They can be considered for planetary ball mills, laboratory mills, attrition mills, and other compatible powder-processing equipment. The mill speed, container material, powder type, and selected ball diameter should be checked before use.
Yes. Diameter, surface finish, inspection requirements, quantity, and packaging can be adjusted for OEM and bulk orders. Drawings are not normally required for standard balls, but detailed operating information is useful when selecting a custom size.
Yes. Supply is available for OEM customers in the USA, Germany, Japan, and other European markets. Export packaging and shipping terms can be arranged according to the destination and order quantity.
